Add delay and duration parameters to jfr telmetry device by debanjanc01 · Pull Request #1630 · elastic/rally

debanjanc01 · 2022-11-21T12:31:47Z

Have you signed the contributor license agreement? - YES
Have you followed the contributor guidelines? - YES
Have you run make check-all successfully? - YES
Did you choose a descriptive title and description for your PR? - YES
(Only for maintainers) Did you apply appropriate labels and a milestone?

This closes: #1617

Two additional parameters have been added for JFR

delay
duration

Additionally, the code block for the existing parameter recording-template has been refactored to avoid code duplication.

dliappis · 2022-11-21T12:37:39Z

@elasticmachine test this please

dliappis

Thank you for the quick and meticulous PR!

I left a question/suggestion about how we expose the options as telemetry parameters (sorry the issue should have thought about it) and that preferably we should namespace them as we do for other telemetry params e.g. node-stats-sample-internal etc.

I haven't tested the PR myself, but triggered a CI run.

dliappis · 2022-11-21T12:44:44Z

esrally/telemetry.py

    def java_opts(self, log_file):
        recording_template = self.telemetry_params.get("recording-template")
+        delay = self.telemetry_params.get("delay")
+        duration = self.telemetry_params.get("duration")


I wonder if we should prefix these (and possible also the recording-template) with jfr i.e. jfr-delay and jfr-duration.
The rationale is that telemetry device parameters are not namespaced and the meaning of delay and duration is too wide to be dedicated only for the jfr telemetry device.

While at it, we could also rename recording-template but a) it'd be a breaking change for some and should also be documented in migrate.rst and b) recording-template is less generic and thus not so important to change right away.

WDYT?

I agree that adding the jfr prefix would make it more consistent with the existing parameter naming convention.
If we are not adding it to the recording-template then wouldn't it break this consistency?

I talked to @dliappis offline. It's OK to keep it like this for now. As PEP 8 says, a foolish consistency is the hobgoblin of little minds. :)

That said, in the future we'll want to switch. This requires a deprecation cycle, much like was done for relative-time (search for it in https://esrally.readthedocs.io/en/stable/migrate.html). Can you please create an issue about migrating to jfr-recording-template so that we don't forget to do it?

Hey @pquentin, just to confirm the todos:

Add the prefix jfr to delay and duration making them jfr-delay and jfr-duration respectively.

Leave recording-template as is.

Create a separate issue for jfr-recording-template

I've pushed the changes in the latest commit. Additionally #1631 has been raised for the jfr-recording-template migration.

dliappis · 2022-11-21T12:46:45Z

esrally/telemetry.py

-                self.logger.info("jfr: Using default recording template.")
+        if delay:
+            self.logger.info("jfr: Using delay [%s].", delay)
+            jfr_cmd += ",delay={}".format(delay)


Suggested change

jfr_cmd += ",delay={}".format(delay)

jfr_cmd += f",delay={delay}"

Had used the string.format as the existing code was using the same.
Using f string would be a better alternative. Will be updating the same for all.

Using f string would be a better alternative. Will be updating the same for all.

FYI we are hoping to migrate to f-strings in the future as much as possible throughout the codebase , especially in "hot" code paths, because they provide the best performance

dliappis · 2022-11-21T12:47:09Z

esrally/telemetry.py

+            jfr_cmd += ",delay={}".format(delay)
+        if duration:
+            self.logger.info("jfr: Using duration [%s].", duration)
+            jfr_cmd += ",duration={}".format(duration)


Suggested change

jfr_cmd += ",duration={}".format(duration)

jfr_cmd += f",duration={duration}"

dliappis · 2022-11-21T12:47:30Z

esrally/telemetry.py

+            jfr_cmd += ",duration={}".format(duration)
+        if recording_template:
+            self.logger.info("jfr: Using recording template [%s].", recording_template)
+            jfr_cmd += ",settings={}".format(recording_template)


Suggested change

jfr_cmd += ",settings={}".format(recording_template)

jfr_cmd += f",settings={recording_template}"

debanjanc01 · 2022-11-21T13:26:00Z

Thank you for the quick and meticulous PR!

I left a question/suggestion about how we expose the options as telemetry parameters (sorry the issue should have thought about it) and that preferably we should namespace them as we do for other telemetry params e.g. node-stats-sample-internal etc.

I haven't tested the PR myself, but triggered a CI run.

I've left my replies. Shall I proceed with the changes? Additionally just wanted to know if there should be separate commits or a single squashed commit?

pquentin

Looks great! Left two comments, one about code style and the other about testing strategy.

pquentin · 2022-11-21T13:25:43Z

tests/telemetry_test.py

+    def test_sets_options_for_pre_java_9_custom_delay(self):
+        jfr = telemetry.FlightRecorder(telemetry_params={"delay": "10s"}, log_root="/var/log", java_major_version=random.randint(0, 8))
+        assert jfr.java_opts("/var/log/test-recording.jfr") == [
+            "-XX:+UnlockDiagnosticVMOptions",
+            "-XX:+DebugNonSafepoints",
+            "-XX:+UnlockCommercialFeatures",
+            "-XX:+FlightRecorder",
+            "-XX:FlightRecorderOptions=disk=true,maxage=0s,maxsize=0,dumponexit=true,dumponexitpath=/var/log/test-recording.jfr",
+            "-XX:StartFlightRecording=defaultrecording=true,delay=10s",
+        ]
+
+    def test_sets_options_for_java_9_or_10_custom_delay(self):
+        jfr = telemetry.FlightRecorder(telemetry_params={"delay": "10s"}, log_root="/var/log", java_major_version=random.randint(9, 10))
+        assert jfr.java_opts("/var/log/test-recording.jfr") == [
+            "-XX:+UnlockDiagnosticVMOptions",
+            "-XX:+DebugNonSafepoints",
+            "-XX:+UnlockCommercialFeatures",
+            "-XX:StartFlightRecording=maxsize=0,maxage=0s,disk=true,dumponexit=true,filename=/var/log/test-recording.jfr,delay=10s",
+        ]
+
+    def test_sets_options_for_java_11_or_above_custom_delay(self):
+        jfr = telemetry.FlightRecorder(telemetry_params={"delay": "10s"}, log_root="/var/log", java_major_version=random.randint(11, 999))
+        assert jfr.java_opts("/var/log/test-recording.jfr") == [
+            "-XX:+UnlockDiagnosticVMOptions",
+            "-XX:+DebugNonSafepoints",
+            "-XX:StartFlightRecording=maxsize=0,maxage=0s,disk=true,dumponexit=true,filename=/var/log/test-recording.jfr,delay=10s",
+        ]
+
+    def test_sets_options_for_pre_java_9_custom_duration(self):
+        jfr = telemetry.FlightRecorder(telemetry_params={"duration": "20m"}, log_root="/var/log", java_major_version=random.randint(0, 8))
+        assert jfr.java_opts("/var/log/test-recording.jfr") == [
+            "-XX:+UnlockDiagnosticVMOptions",
+            "-XX:+DebugNonSafepoints",
+            "-XX:+UnlockCommercialFeatures",
+            "-XX:+FlightRecorder",
+            "-XX:FlightRecorderOptions=disk=true,maxage=0s,maxsize=0,dumponexit=true,dumponexitpath=/var/log/test-recording.jfr",
+            "-XX:StartFlightRecording=defaultrecording=true,duration=20m",
+        ]
+
+    def test_sets_options_for_java_9_or_10_custom_duration(self):
+        jfr = telemetry.FlightRecorder(telemetry_params={"duration": "20m"}, log_root="/var/log", java_major_version=random.randint(9, 10))
+        assert jfr.java_opts("/var/log/test-recording.jfr") == [
+            "-XX:+UnlockDiagnosticVMOptions",
+            "-XX:+DebugNonSafepoints",
+            "-XX:+UnlockCommercialFeatures",
+            "-XX:StartFlightRecording=maxsize=0,maxage=0s,disk=true,dumponexit=true,filename=/var/log/test-recording.jfr,duration=20m",
+        ]
+
+    def test_sets_options_for_java_11_or_above_custom_duration(self):
+        jfr = telemetry.FlightRecorder(
+            telemetry_params={"duration": "20m"}, log_root="/var/log", java_major_version=random.randint(11, 999)
+        )
+        assert jfr.java_opts("/var/log/test-recording.jfr") == [
+            "-XX:+UnlockDiagnosticVMOptions",
+            "-XX:+DebugNonSafepoints",
+            "-XX:StartFlightRecording=maxsize=0,maxage=0s,disk=true,dumponexit=true,filename=/var/log/test-recording.jfr,duration=20m",
+        ]
+
+    def test_sets_options_for_pre_java_9_custom_delay_and_duration(self):
+        jfr = telemetry.FlightRecorder(
+            telemetry_params={"delay": "10s", "duration": "20m"}, log_root="/var/log", java_major_version=random.randint(0, 8)
+        )
+        assert jfr.java_opts("/var/log/test-recording.jfr") == [
+            "-XX:+UnlockDiagnosticVMOptions",
+            "-XX:+DebugNonSafepoints",
+            "-XX:+UnlockCommercialFeatures",
+            "-XX:+FlightRecorder",
+            "-XX:FlightRecorderOptions=disk=true,maxage=0s,maxsize=0,dumponexit=true,dumponexitpath=/var/log/test-recording.jfr",
+            "-XX:StartFlightRecording=defaultrecording=true,delay=10s,duration=20m",
+        ]
+
+    def test_sets_options_for_java_9_or_10_custom_delay_and_duration(self):
+        jfr = telemetry.FlightRecorder(
+            telemetry_params={"delay": "10s", "duration": "20m"}, log_root="/var/log", java_major_version=random.randint(9, 10)
+        )
+        assert jfr.java_opts("/var/log/test-recording.jfr") == [
+            "-XX:+UnlockDiagnosticVMOptions",
+            "-XX:+DebugNonSafepoints",
+            "-XX:+UnlockCommercialFeatures",
+            "-XX:StartFlightRecording=maxsize=0,maxage=0s,disk=true,dumponexit=true,"
+            "filename=/var/log/test-recording.jfr,delay=10s,duration=20m",
+        ]
+
+    def test_sets_options_for_java_11_or_above_custom_delay_and_duration(self):
+        jfr = telemetry.FlightRecorder(
+            telemetry_params={"delay": "10s", "duration": "20m"}, log_root="/var/log", java_major_version=random.randint(11, 999)
+        )
+        assert jfr.java_opts("/var/log/test-recording.jfr") == [
+            "-XX:+UnlockDiagnosticVMOptions",
+            "-XX:+DebugNonSafepoints",
+            "-XX:StartFlightRecording=maxsize=0,maxage=0s,disk=true,dumponexit=true,"
+            "filename=/var/log/test-recording.jfr,delay=10s,duration=20m",
+        ]
+
+    def test_sets_options_for_pre_java_9_custom_delay_duration_recording_template(self):
+        jfr = telemetry.FlightRecorder(
+            telemetry_params={"recording-template": "profile", "duration": "20m", "delay": "10s"},
+            log_root="/var/log",
+            java_major_version=random.randint(0, 8),
+        )
+        assert jfr.java_opts("/var/log/test-recording.jfr") == [
+            "-XX:+UnlockDiagnosticVMOptions",
+            "-XX:+DebugNonSafepoints",
+            "-XX:+UnlockCommercialFeatures",
+            "-XX:+FlightRecorder",
+            "-XX:FlightRecorderOptions=disk=true,maxage=0s,maxsize=0,dumponexit=true,dumponexitpath=/var/log/test-recording.jfr",
+            "-XX:StartFlightRecording=defaultrecording=true,delay=10s,duration=20m,settings=profile",
+        ]
+
+    def test_sets_options_for_java_9_or_10_custom_delay_duration_recording_template(self):
+        jfr = telemetry.FlightRecorder(
+            telemetry_params={"recording-template": "profile", "duration": "20m", "delay": "10s"},
+            log_root="/var/log",
+            java_major_version=random.randint(9, 10),
+        )
+        assert jfr.java_opts("/var/log/test-recording.jfr") == [
+            "-XX:+UnlockDiagnosticVMOptions",
+            "-XX:+DebugNonSafepoints",
+            "-XX:+UnlockCommercialFeatures",
+            "-XX:StartFlightRecording=maxsize=0,maxage=0s,disk=true,dumponexit=true,"
+            "filename=/var/log/test-recording.jfr,delay=10s,duration=20m,settings=profile",
+        ]
+
+    def test_sets_options_for_java_11_or_above_custom_delay_duration_recording_template(self):
+        jfr = telemetry.FlightRecorder(
+            telemetry_params={"recording-template": "profile", "duration": "20m", "delay": "10s"},
+            log_root="/var/log",
+            java_major_version=random.randint(11, 999),
+        )
+        assert jfr.java_opts("/var/log/test-recording.jfr") == [
+            "-XX:+UnlockDiagnosticVMOptions",
+            "-XX:+DebugNonSafepoints",
+            "-XX:StartFlightRecording=maxsize=0,maxage=0s,disk=true,dumponexit=true,"
+            "filename=/var/log/test-recording.jfr,delay=10s,duration=20m,settings=profile",
+        ]
+


Thanks for being that thorough in your tests. However, I think it's a bit too much. Each test should test for a specific thing, and each change should only break one test. Case in point, to change duration to jfr-duration and delay to jfr-delay, you now have to change twelve tests!

In practice, you don't have to test specifically for the Java version, it's done already. And you don't have to test for the "no parameters case", it's done already. You can reduce your twelve tests to one with all the settings enabled (params, delay and duration).

Makes sense, will be updating this to just have a single test will all params.

esrally/telemetry.py

dliappis · 2022-11-21T13:59:25Z

Shall I proceed with the changes? Additionally just wanted to know if there should be separate commits or a single squashed commit?

Feel free to proceed based on the feedback of @pquentin and mine. No particular preferences for the commits as anyway when it's time to merge we'll be squashing.

dliappis · 2022-11-21T14:00:00Z

@elasticmachine test this please

pquentin

This looks great! We only need to test that it actually works. Have you tried?

Also left a small question.

pquentin · 2022-11-22T06:22:09Z

docs/telemetry.rst

+* ``jfr-delay``: (Optional) Length of time to wait before starting to record (INTEGER followed by 's' for seconds 'm' for minutes or 'h' for hours, 0s). It is up to you to correctly pass in the value.
+* ``jfr-duration``: (Optional) Length of time to record. Note that 0s means forever (INTEGER followed by 's' for seconds 'm' for minutes or 'h' for hours, 0s). It is up to you to correctly pass in the value.


Why do we we include , 0s at the end? I don't understand what this means.

0s is default value for both the parameters. I've updated the documentation to reflect this properly.

…parameters for jfr

dliappis · 2022-11-22T07:05:52Z

@elasticmachine test this please

debanjanc01 · 2022-11-22T07:35:01Z

This looks great! We only need to test that it actually works. Have you tried?

Also left a small question.

Although I have checked that the final java cmd is as expected, I didn't get the opportunity to actually test this out.

pquentin

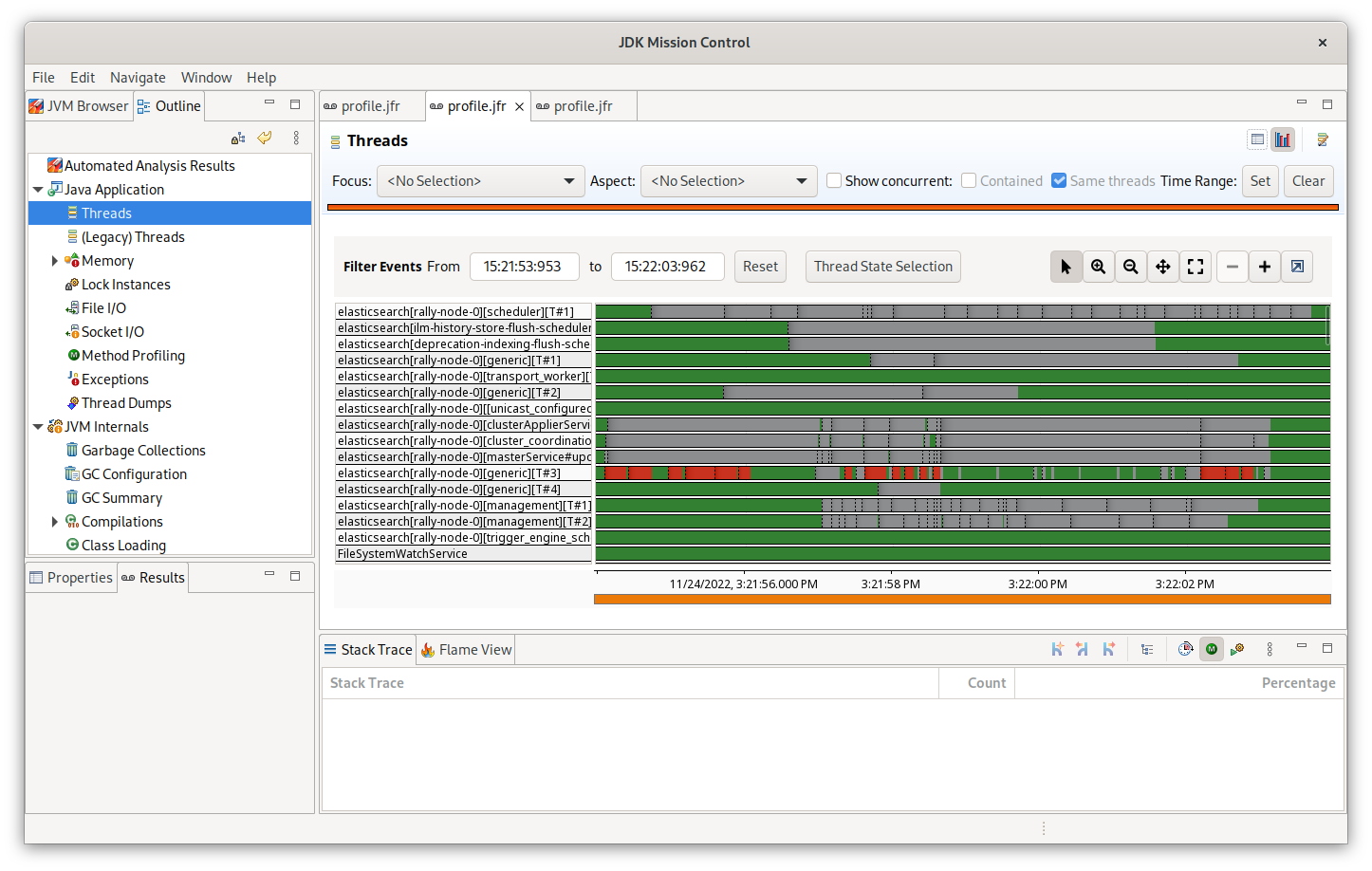

Thanks! This works.

I tried esrally race --distribution-version=8.5.1 --test-mode --track=geonames --telemetry jfr --telemetry-params="jfr-delay:10s,jfr-duration:10s" and did get a 10 seconds record starting after 10 seconds.

We don't usually merge on Fridays, and tomorrow is a Shut it Down day at Elastic, so we'll merge on Monday.

debanjanc01 · 2022-11-28T16:43:08Z

Thanks for the quick reviews and suggestions @dliappis @pquentin !

added delay and duration parameters to jfr telmetry device

c0024b6

dliappis requested review from dliappis and ebadyano November 21, 2022 12:37

dliappis added enhancement Improves the status quo :Telemetry Telemetry Devices that gather additional metrics labels Nov 21, 2022

dliappis added this to the 2.7.1 milestone Nov 21, 2022

dliappis reviewed Nov 21, 2022

View reviewed changes

pquentin requested changes Nov 21, 2022

View reviewed changes

update paramters delay to jfr-delay and duration to jfr-duration

5c4dec7

debanjanc01 mentioned this pull request Nov 21, 2022

Migrate JFR parameter recording-template to jfr-recording-template #1631

Open

debanjanc01 requested review from pquentin and removed request for ebadyano November 21, 2022 14:15

pquentin reviewed Nov 22, 2022

View reviewed changes

updated telemetry.rst to signify meaning of 0s in delay and duration …

5610fad

…parameters for jfr

pquentin approved these changes Nov 24, 2022

View reviewed changes

pquentin merged commit b5bc1b6 into elastic:master Nov 29, 2022

pquentin changed the title ~~added delay and duration parameters to jfr telmetry device~~ Add delay and duration parameters to jfr telmetry device Mar 2, 2023

	jfr_cmd += ",delay={}".format(delay)
	jfr_cmd += f",delay={delay}"

	jfr_cmd += ",duration={}".format(duration)
	jfr_cmd += f",duration={duration}"

	jfr_cmd += ",settings={}".format(recording_template)
	jfr_cmd += f",settings={recording_template}"

		* ``jfr-delay``: (Optional) Length of time to wait before starting to record (INTEGER followed by 's' for seconds 'm' for minutes or 'h' for hours, 0s). It is up to you to correctly pass in the value.
		* ``jfr-duration``: (Optional) Length of time to record. Note that 0s means forever (INTEGER followed by 's' for seconds 'm' for minutes or 'h' for hours, 0s). It is up to you to correctly pass in the value.

Conversation

debanjanc01 commented Nov 21, 2022

Uh oh!

dliappis commented Nov 21, 2022

Uh oh!

dliappis left a comment

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

debanjanc01 Nov 21, 2022 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

debanjanc01 commented Nov 21, 2022 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

pquentin left a comment

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Uh oh!

dliappis commented Nov 21, 2022

Uh oh!

dliappis commented Nov 21, 2022

Uh oh!

pquentin left a comment

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

dliappis commented Nov 22, 2022

Uh oh!

debanjanc01 commented Nov 22, 2022

Uh oh!

pquentin left a comment

Choose a reason for hiding this comment

Uh oh!

debanjanc01 commented Nov 28, 2022

Uh oh!

Reviewers

Assignees

Labels

Projects

Milestone

Development

Uh oh!

3 participants

debanjanc01 Nov 21, 2022 •

edited

Loading

debanjanc01 commented Nov 21, 2022 •

edited

Loading
