Porcupine HTML Editor

A Blazor component that wraps QuillJS to enable WYSIWIG style HTML editing in Blazor apps.

Allows direct modification of CSS properties without requiring any additional CSS frameworks

Set up the QuillJS Dependency

You can link to the files from the QuillJS CDN or download them and reference them from your own project.

1. In your .cshtml (Blazor Server) or .html file (WASM), reference one (or both) of the QuillJS themes.

   Porcupine supports the "Snow" and "Bubble" themes.



   https://cdn.quilljs.com/1.3.6/quill.snow.css

   https://cdn.quilljs.com/1.3.6/quill.bubble.css


2. At the end of the same file, reference the QuillJS library.



   https://cdn.quilljs.com/1.3.6/quill.js


Set up Porcupine

Download a .zip of the latest version from the Releases page.

1. Extract the PorcupineComponent.dll into a folder with any other pre-compiled libraries you may have

   Add a reference to the assembly



2. Extract porcupine.js into your project's wwwroot

   Add a reference beneath the quill.js reference we created earlier



3. Add the PorcupineHtmlEditor namespace to your _Imports.razor file.

   Add a reference to Microsoft.JSInterop if you don't have it already.



   @using PorcupineHtmlEditor
   @using Microsoft.JSInterop


Using Porcupine

Insert the Editor

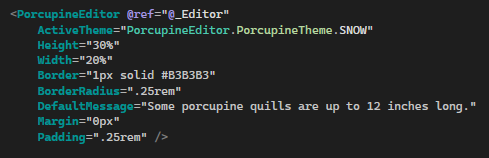

• Add the editor to your Blazor page with the PorcupineEditor tag



  The control exposes a number of properties that can be overridden. Most use standard CSS strings

  • ActiveTheme - Enum

    PorcupineTheme.SNOW or PorcupineTheme.BUBBLE

    DEFAULT: PorcupineTheme.SNOW

  • Id - String

    Overrides the editor's HTML id

    DEFAULT - "porcupineEditor" + randomly generated GUID

  • Class - String

    Overrides the main editor CSS class - MAY OVERRIDE OTHER DEFAULT STYLING, USE WITH CAUTION

  • Height - Accepts standard CSS strings

    DEFAULT: 100%, editor will fill container that it is placed in

  • Width - Accepts standard CSS strings

    DEFAULT: 100%, editor will fill container that it is placed in

  • Margin - Accepts standard CSS strings

    DEFAULT: 0px

  • Padding - Accepts standard CSS strings

    DEFAULT: 0px

  • Border - Accepts standard CSS strings

    DEFAULT: 1px solid #B3B3B3

  • BorderRadius - Accepts standard CSS strings

    DEFAULT: .25rem

  • DefaultMessage - Accepts a string - the same as html placeholder

    DEFAULT: "Some porcupine quills are up to 12 inches long!";

  Reference the Editor

• Get a reference to the editor in your @code block or code-behind file

Content

• Get HTML Length

  int htmlLength = await _Porcupine.GetLength();


• Retrieve HTML

  string html = await _Porcupine.GetHTML();


• Set HTML

  await _Porcupine.SetHTML(string htmlString);
  await _Porcupine.SetHTML(MarkupString markupString);


• Retrieve Text

  string fullText = await _Porcupine.GetText();
  string textToEnd = await _Porcupine.GetText(int startIndex);
  string partialText = await _Porcupine.GetText(int startIndex, int length);


• Set Text

  await _Porcupine.SetText("SetPorcupineText");


• Insert Text at Index

  await _Porcupine.InsertText(int index, string text);


• Insert Image from URL

  await _Porcupine.InsertImage(int index, string imageURL);


Editor

• Show Porcupine

  await _Porcupine.ShowPorcupine();


• Hide Porcupine

  await _Porcupine.HidePorcupine();


• Clear Focus

  await _Porcupine.ClearFocus;


• Grab Focus

  await _Porcupine.GrabFocus();


• Is Porcupine Focused?

  bool isFocused = await _Porcupine.IsFocused();


• Enable Porcupine

  await _Porcupine.EnablePorcupine();


• Disable Porcupine

  await _Porcupine.DisablePorcupine();


Formatting

• Format Selection

  await _Porcupine.FormatSelection(string property, string value);


• Format Text

  await _Porcupine.Text(int index, int length, string property, string value);


• Clear Format

  await _Porcupine.ClearFormat(int index, int length);


Selection

• Get Bounds

  JsonObject bounds = await _Porcupine.GetBounds(int index, int length);


• Get Selection

  JsonObject selection = _Porcupine.GetSelection();


• Set Selection

  await _Porcupine.SetSelection(int index, int length);
