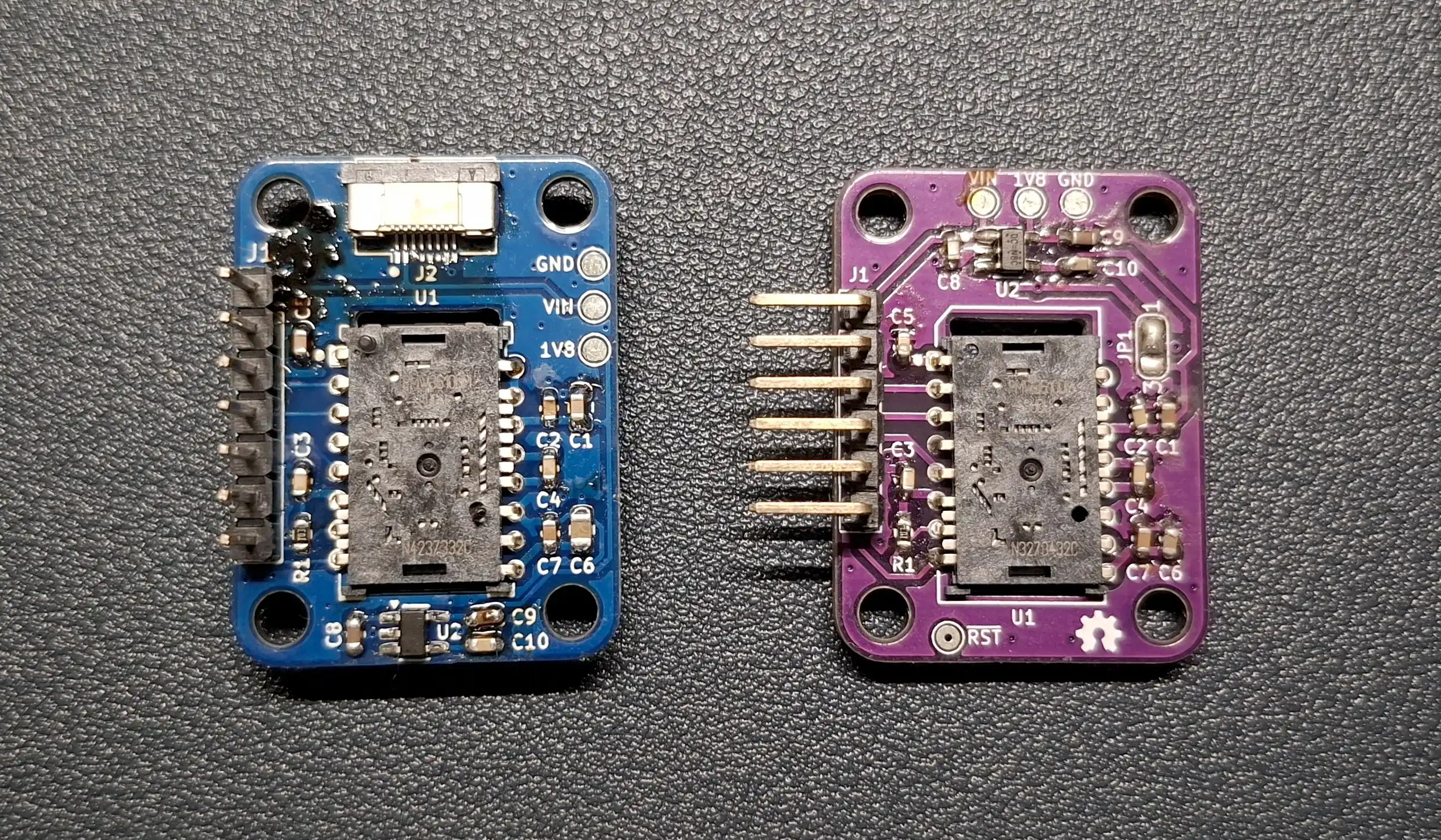

Breakout board for the PixArt PMW3610DM-SUDU, a low-power laser mouse sensor. An alternative to the PMW3360 PCB for low-power applications. Can be used to make a mouse or trackball.
✨ Features:
- Compatible with ZMK projects. Demo video
- Operates at either 1.8V or 3.3V voltage levels.
- Supports both 2.54mm pin headers and 0.5mm-pitch FFC/FPC connectors.
- The optical center of the sensor is located in the center of the PCB.
Online preview available here, powered by KiCanvas.
📖 For more detailed information, please refer to the docs (alternative link).
- Hardware: Available under the CERN-OHL-P v2 permissive license.
- Firmware: Licensed under Apache 2.0 as identified by the SPDX in each file.
